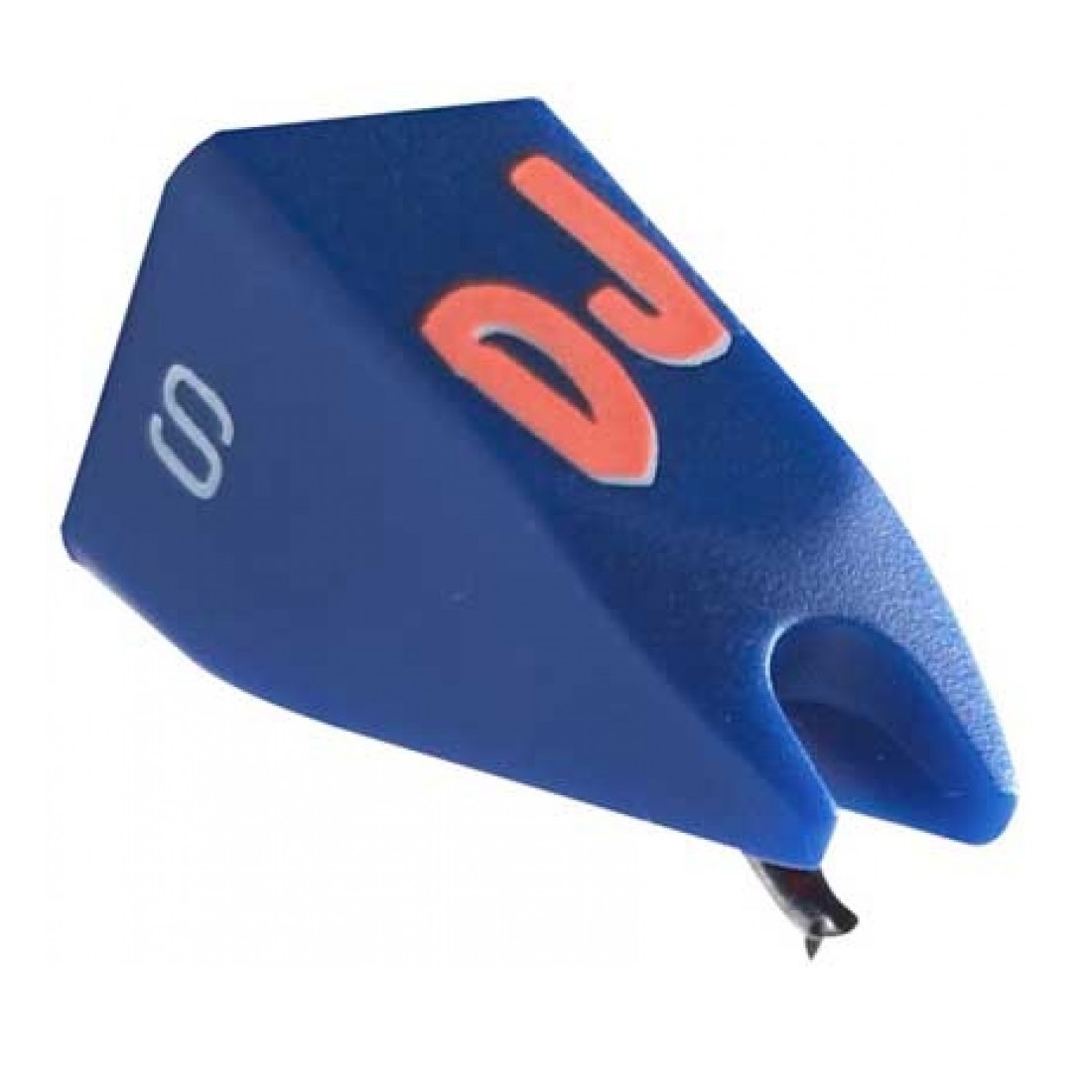

Aguja ORTOFON DJ S
Aguja ORTOFON DJ S
Especificaciones
Output voltage at 1000Hz, 5cm/sec. – 6 mV
Channel balance at 1kHz – 2 dB
Channel separation at 1kHz – 23 dB
Channel separation at 15 kHz – 15 dB
Frequency range at -3dB – 20-20.000 Hz
Frequency response – 20-18.000 Hz 3dB/-2dB
Tracking ability at 315 Hz at recommended tracking force – 80 μm
Compliance, dynamic lateral – 9 μm/m N
Stylus type – Spherical
Stylus tip radius – R 18 μm
Tracking force range – 2.0-4.0 g (20-40 mN)
Tracking force recommended – 3.0 g (30 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 750 Ohm
Internal inductance – 450 mH
Recommended load resistance – 47 kOhm
Recommended load capacitance – 200-600 pF
Concorde cartridge weight – 18.5 g
