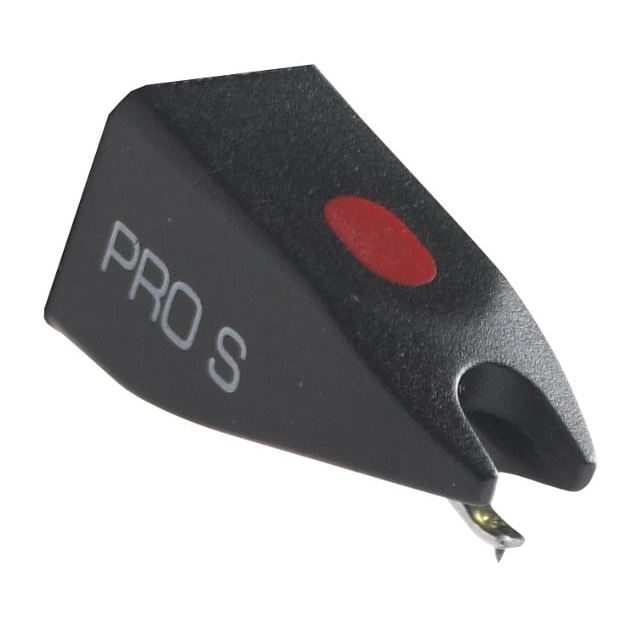

Aguja ORTOFON Pro S
32,67€ IVA Incluido
– Aguja Ortofon PRO S
– Balance de canal a 1 kHz: 2dB
– Separación de canales a 1 kHz: 20dB
– Voltaje de salida a 1000 Hz, 5cm/sec: 5mV
Aguja ORTOFON PRO S
Especificaciones
Output voltage at 1000Hz, 5cm/sec. – 5 mV
Channel balance at 1kHz – 2 dB
Channel separation at 1kHz – 20 dB
Channel separation at 15 kHz – 15 dB
Frequency range at -3dB – 20-18.000 Hz
Frequency response – 20-18.000 Hz +/-2 dB
Tracking ability at 315 Hz at recommended tracking force – 70 μm
Compliance, dynamic lateral – 7 μm/m N
Stylus type – Spherical
Stylus tip radius – R 18 μm
Tracking force range – 3.0-5.0 g (30-50 mN)
Tracking force recommended – 4.0 g (40 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 750 Ohm
Internal inductance – 450 mH
Recommended load resistance – 47 kOhm
Recommended load capacitance – 200-600 pF
Concorde / OM cartridge weight – 18.5 g / 5.0 g
Para más información sobre el producto:
