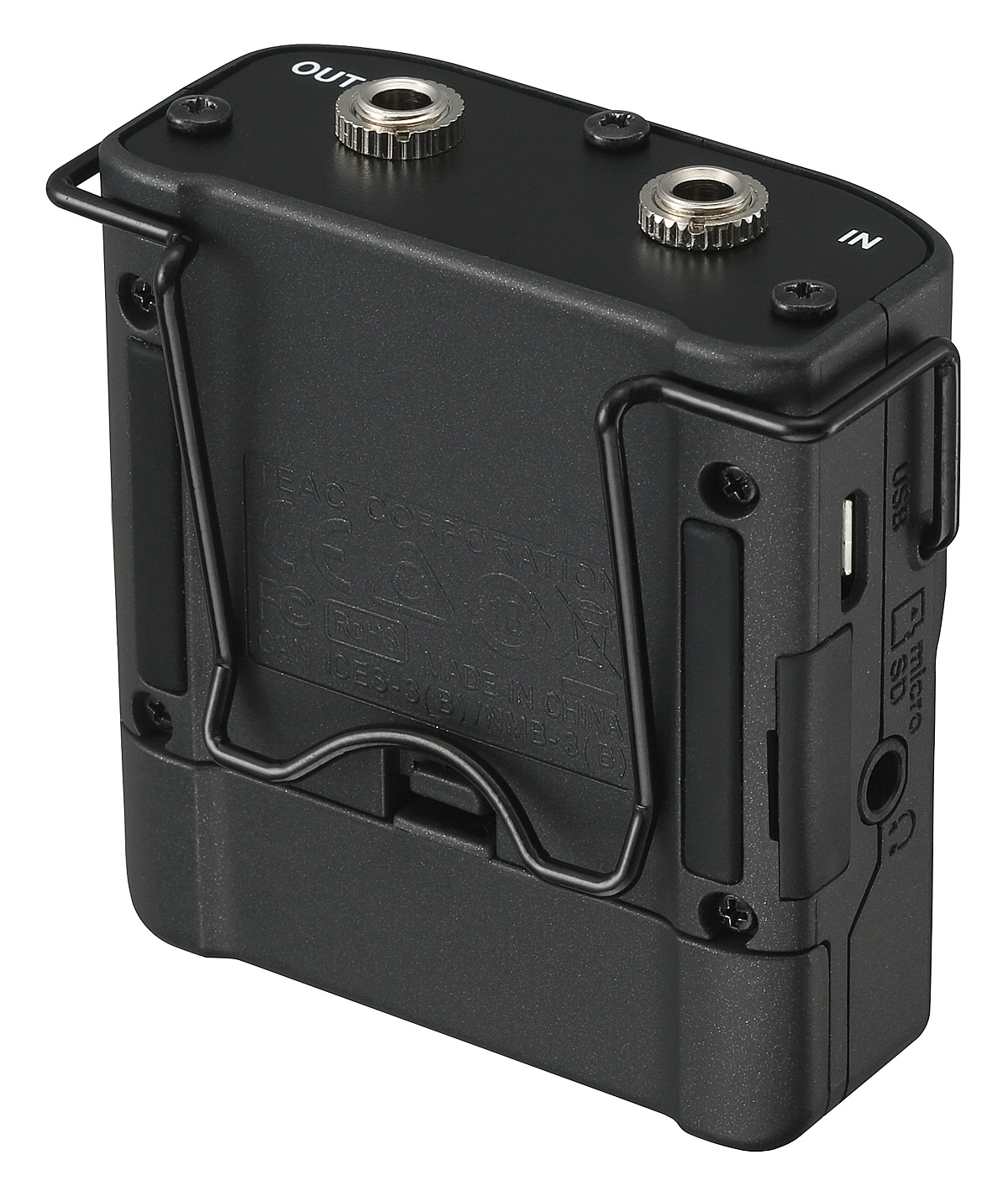

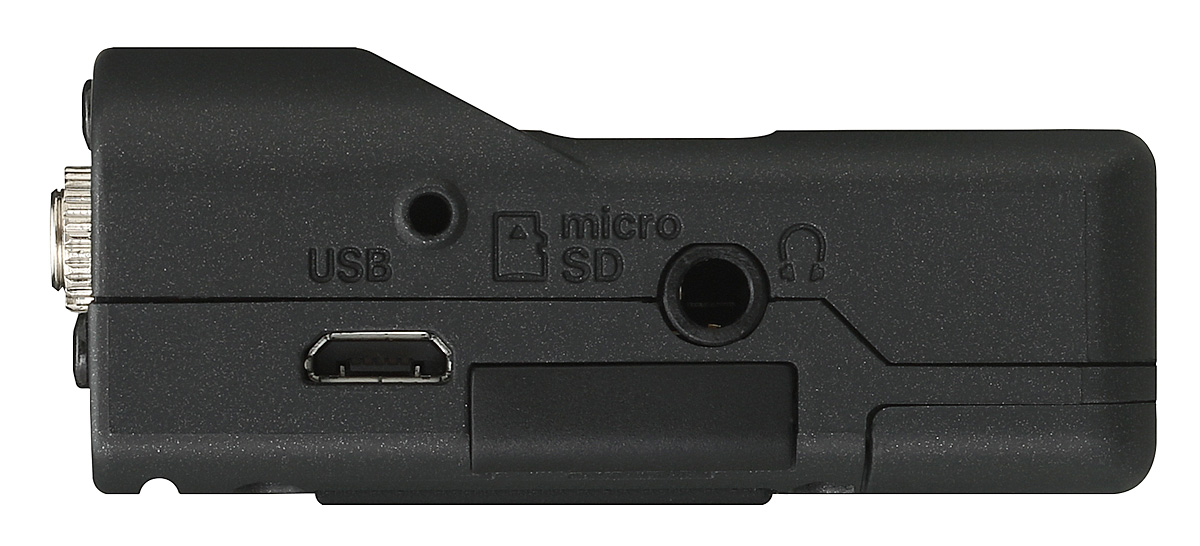

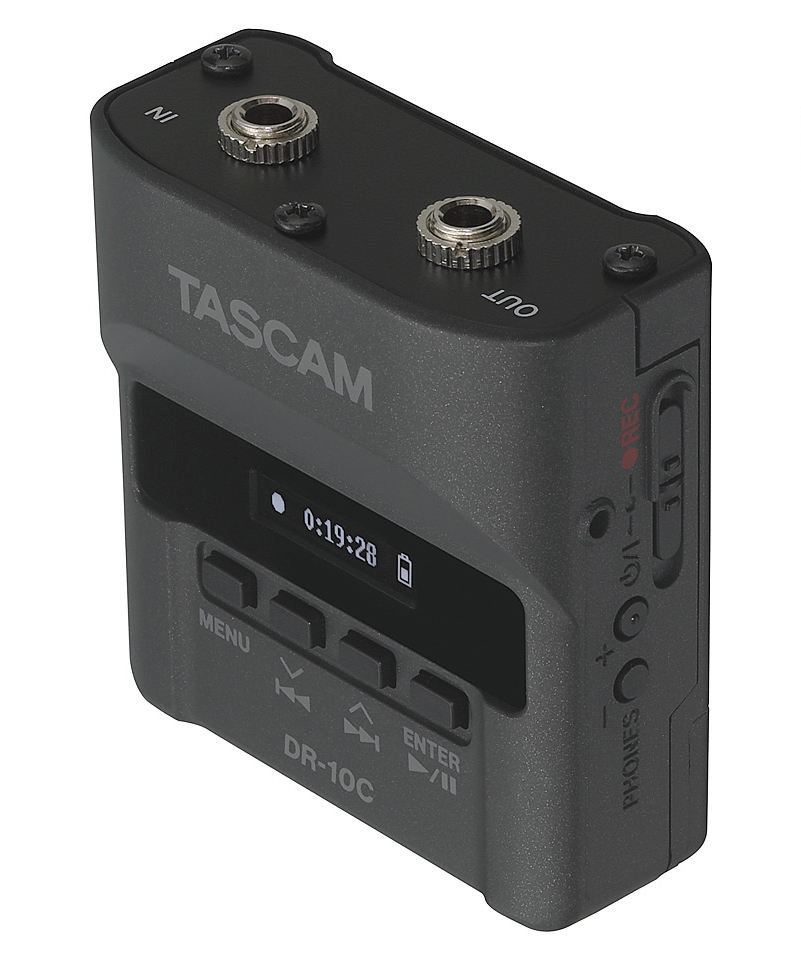

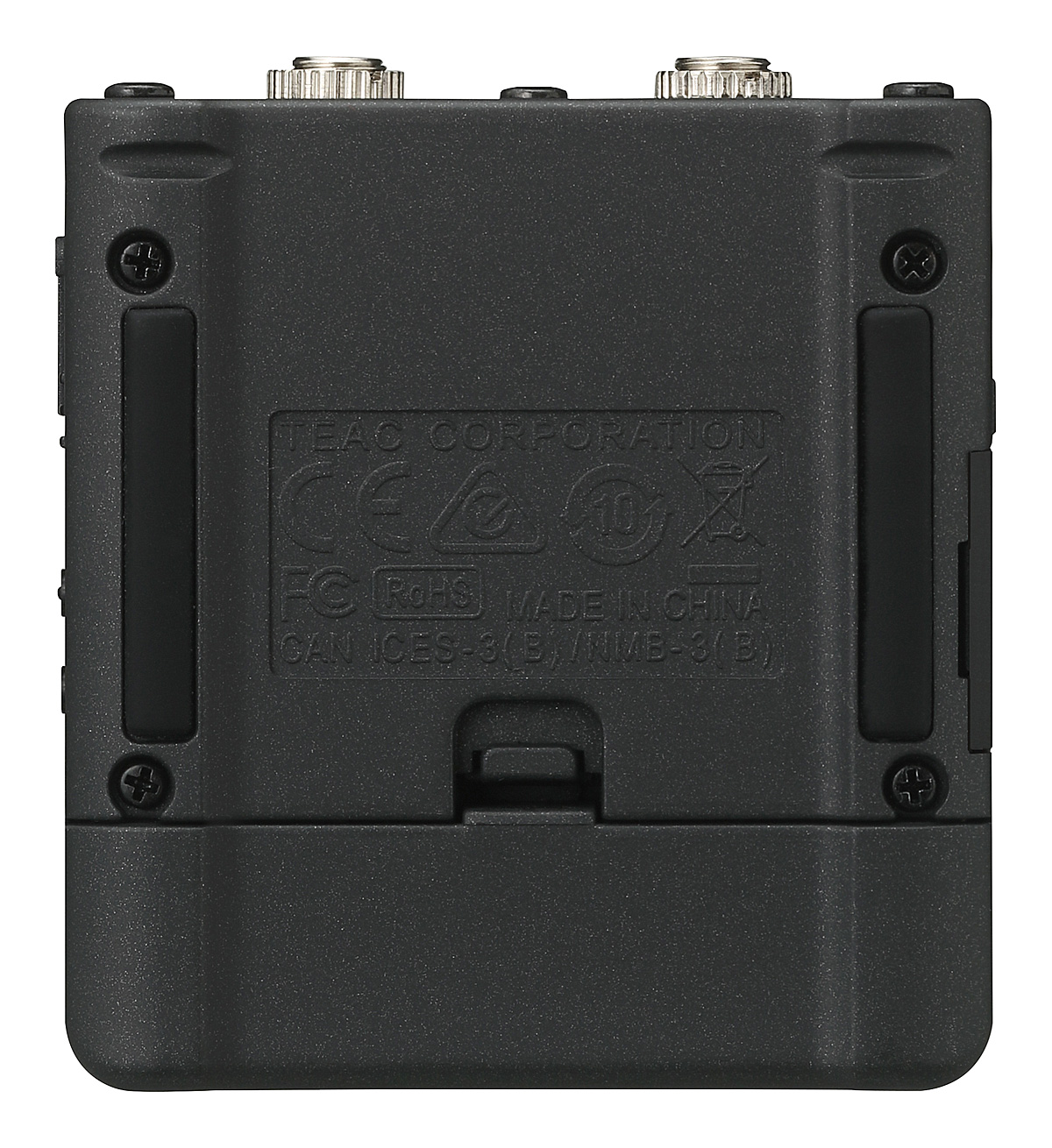

Grabadora TASCAM DR-10CS
Pase el cursor sobre la imagen para ampliar
282,92€ IVA Incluido
¿Lo has visto más barato? Clica aquí
GRABADORA TASCAM DR-10CS para microfonos lavalier Sennheiser
- Micro grabador linear PCM para micrófonos lavalier Sennheiser.
- Puede conectarse entre un micrófono lavalier y un transmisor inalámbrico para grabaciones de backup.
- Grabación en BWF mono a 48 kHz y 24-bit.
- Graba en tarjetas microSD/microSDHC (hasta 32 GB).
Grabadora TASCAM DR-10CS
Especificaciones
| General | |
|---|---|
| Recording media | microSD card (64 MB – 2 GB) microSDHC card (4–32 GB) |
| Recording/playback formats | BWF-compatible WAV format, 44.1/48 kHz, 16/24 bits, mono/poly MP3 format, 44.1/48 kHz, 128/192 kbit/s (recording) 32–320 kbit/s (playback) |
| Inputs and outputs | |
|---|---|
| Analogue input (microphone) | DR-10CS (for Sennheiser): 3.5-mm mini TRS jack (with screw lock) DR-10CH (for Shure): Mini XLR 4-pin male |
| Maximum input level | –12 dBV |
| Minimum input level | –53 dBV |
| Mic input gain | 10 dB to 35 dB (according to MODEL SELECT setting) |
| Input impedance | 33 kΩ or higher |
| Analogue output (passed to the transmitter) | DR-10CS (for Sennheiser): 3.5-mm mini TRS jack (with screw lock) DR-10CH (for Shure): Mini XLR 4-pin male |
| Analogue output (Headphones jack) | 3.5-mm mini stereo jack (dual mono audio output) |
| Audio performance, input to phones output | |
|---|---|
| Frequency response | 20 Hz – 22 kHz, +1/-3 dB |
| Distortion | 0.05 % (1 kHz sine wave, maximum input level) |
| S/N ratio | 88 dB or higher (PHONES level max., MIC GAIN set to LO) |
| Power supply and other specifications | |
|---|---|
| Power supply | 1 AAA battery (alkaline, NiMH or lithium) USB bus power from a computer |
| Power consumption | 0.45 W (maximum) |
| Current consumption （USB bus power) | 0.25A (maximum) |
| Date and time data retention | Secondary lithium battery (built-in) |
| Dimensions (W × H × D) | 52 x 56 x 25 mm (excluding protrusions) |
| Weight | 63 g (with battery) 51 g (without battery) |
| Permissible operating temperature range | 0-40 °C |
| Battery operation time | |
|---|---|
| Conditions: WAV recording at 48 kHz/24 bit, continuous operation, JEITA recording times, in hours: minutes | |
| Alkaline battery (Evolta) | |
| 10:00 | Microphone and transmitter connected, headphones not connected, mic bias off, limiter off, dual recording off |
| 9:30 | Only microphone connected, headphones not connected, mic bias on, limiter off, dual recording off |
| NiMH battery (Eneloop) | |
| 8:00 | Microphone and transmitter connected, headphones not connected, mic bias off, limiter off, dual recording off |
| 7:30 | Only microphone connected, headphones not connected, mic bias on, limiter off, dual recording off |
| Lithium battery (Energizer Ultimate Lithium) | |
| 15:30 | Microphone and transmitter connected, headphones not connected, mic bias off, limiter off, dual recording off |
| 14:30 | Only microphone connected, headphones not connected, mic bias on, limiter off, dual recording off |
