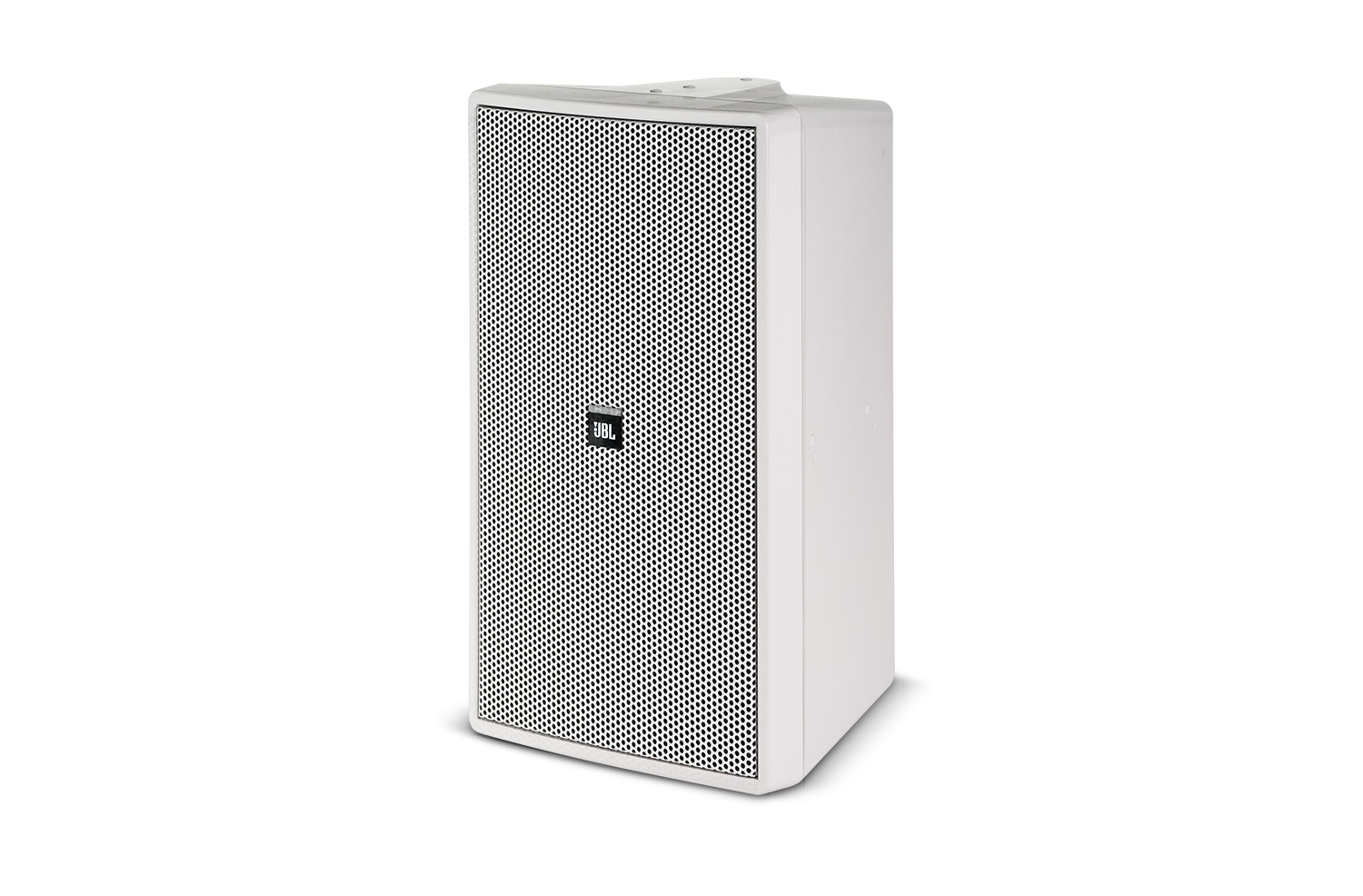

Caja Pasiva JBL Control 29AV Blanca
Pase el cursor sobre la imagen para ampliar
697,07€ IVA Incluido
¿Lo has visto más barato? Clica aquí
CAJA PASIVA JBL CONTROL 29AV BLANCA
Caja todo-rango de 2 vías blindada magnéticamente a partir de 23cm; woofer de 8″, motor de medios agudos de titanio de 1″, con difusor 110 x 85 rotable. Potencia Programa: 300W; Potencia Continua 100H: 150W a 8Ohm y conmutable a línea de 100 V (110, 55 y 28 W) o 70V (110, 55, 28, 14. Sensibilidad 91 dB (1W / 1m).
Respuesta en frecuencia de 40 Hz a 19 KHz. Caja y componentes resistentes a intemperie con protección de espuma en la rejilla y protector de panel de conexiones MTC-PC2, acabado en negro pintable. Incluye soporte de rótula InvisiBall. Dimensiones: 520x306x277 mm. Peso: 12,2 kg.
Caja Pasiva JBL Control 29AV Blanca
Caracteristicas
| Frequency Range | 37 Hz –18 kHz (-10 dB) |
| Power Capacity | 300 W Continuous Program Power; 150 W Continuous Pink Noise |
| Transformer Taps | 70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W, Thru Position: 8 ohms nominal |
| Frequency Response | 45 Hz – 18 kHz ( ± 3 dB) |
| Maximum SPL (1m) | Short-Term: 120 dB; Long-Term: 114 dB |
| Nominal Sensitivity | 90 dB (2.83V / 1m) |
| Coverage Angle | 110° H x 85° V, rotatable |
| Directivity Factor (Q) | 7.2 dB, averaged 500 Hz to 16 kHz |
| Directivity Index (DI) | 8.6 dB, averaged 500 Hz to 16 kHz |
| Impedance | 8 ohms |
| Minimum Impedance | 6.3 ohms @ 230 Hz |
| Crossover Network | 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency |
| Drivers | LF: 200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former HF: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround |
| Enclosure | High impact polystyrene |
| Grille | Thermoset composite coated steel, WeatherMax multi-layer foam |
| Overload Protection | Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions. |
| Outdoor Capability | IEC 529 IP-X4 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray. |
| Input Connectors | Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2). |
| Safety Agency | Transformer is listed per UL1876 |
| Colors | Black or white (-WH) |
| Dimensions (H x W x D) | 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.) |
| Net Weight (each) | 12.2 kg (26.8 lb.) |
| Shipping Weight (ea) | 14.0 kg (30.8 lb.) |
| Included Accessories | 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench. |
| Optional Accessories | MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket |
| Mounting Hardware | InvisiBall™ aimable wall-mounting system included. Optional U-bracket. |
