CAJA PASIVA JBL CONTROL 28-1 (PAREJA)

675,26 IVA Incluido

¿Lo has visto más barato? Clica aquí

Hay existencias

CAJA PASIVA JBL CONTROL 28-1 (PAREJA)

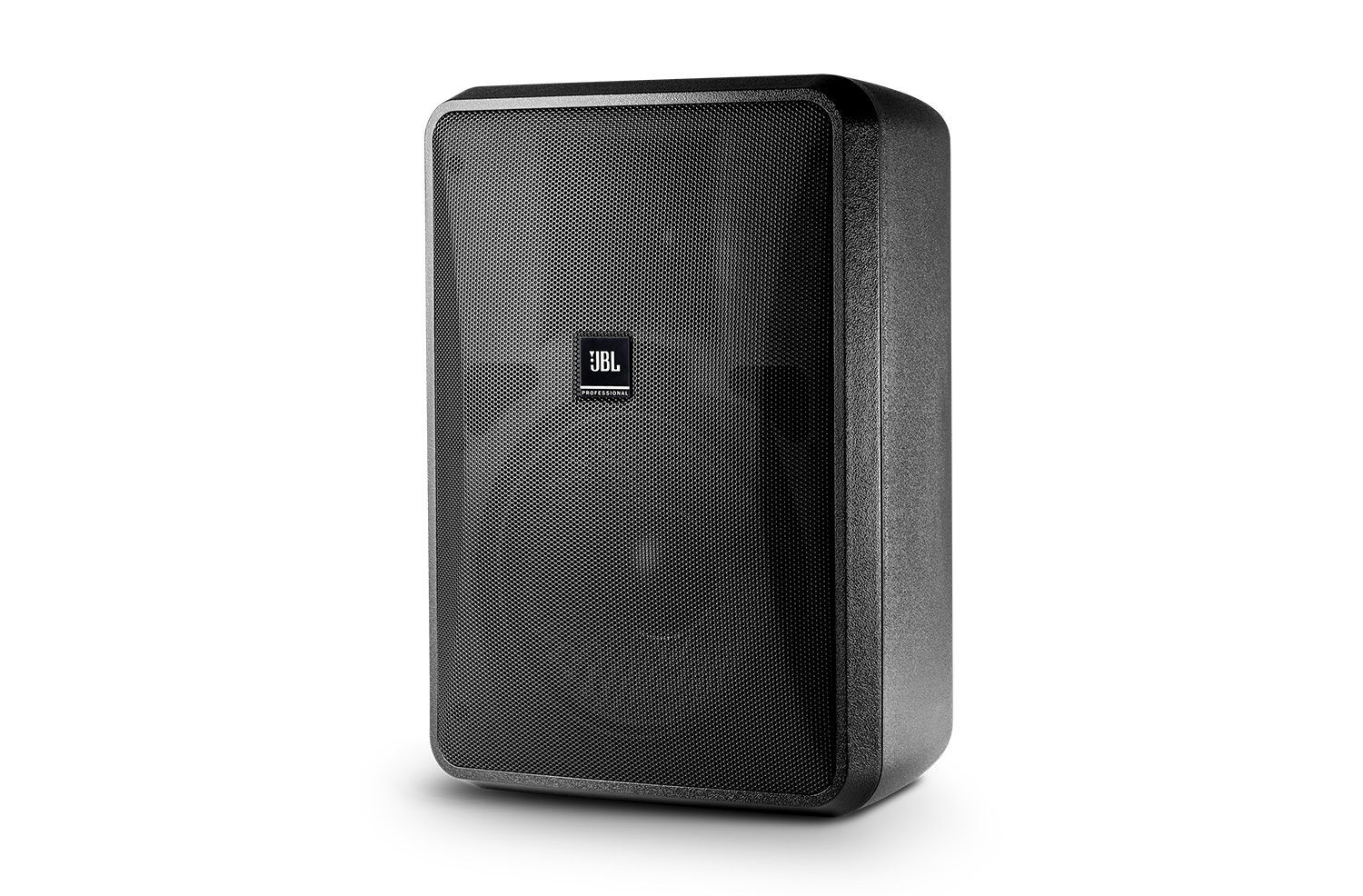

Caja todo-rango de 2 vías compacta, woofer de 8″, tweeter PEI de 1″, con difusor 100 x 100 . Potencia Programa: 240W; Potencia Continua 100H: 90 W a 8Ohm. Sensibilidad 91 dB (1W / 1m). Potencia a 100 V ( 60, 30 y 15W) o a 70 V ( 60, 30, 15 y 7.5W). Respuesta en frecuencia de 62 Hz a 16 KHz.

Caja IP44 resistente a radiacion Ultra Violeta con rejilla galvanizada. Disponible opción IP55 montando MTC-28WMG-1 WeatherMax opcional. Acabado en color negro. Incluye soporte de rótula InvisiBall. Dimensiones: 386x282x219 mm. Peso: 6,8 kg.
SKU: CONTROL28-1 Categorias: , ,

CAJA PASIVA JBL CONTROL 28-1 (PAREJA)

Specifications

Frequency Response (-10dB) 45 Hz to 20 kHz
Frequency Response (±3 dB) 62Hz – 16 kHz
Power Rating 240 W Continuous Program (2 hrs) 120 W (480W peak), Continuous Pink Noise (2 hrs) 90 W (360W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage 27.5 V RMS (2 hrs), 55.0 V peak
Maximum SPL (1m) 112 dB ave. Continuous Pink Noise (118 dB peak)
Sensitivity 91 dB, 1W/1m (ave. 100 Hz – 10 kHz)
Coverage Angle 100° x 100°
Directivity Factor (Q) 7.3 (averaged 1kHz – 16kHz)
Directivity Index (DI) 8.3dB (averaged 1kHz – 16kHz)
Impedance 8 ohms (THRU setting)
Crossover Type 2nd order low-pass, 1st order high-pass, plus conjugate shaping

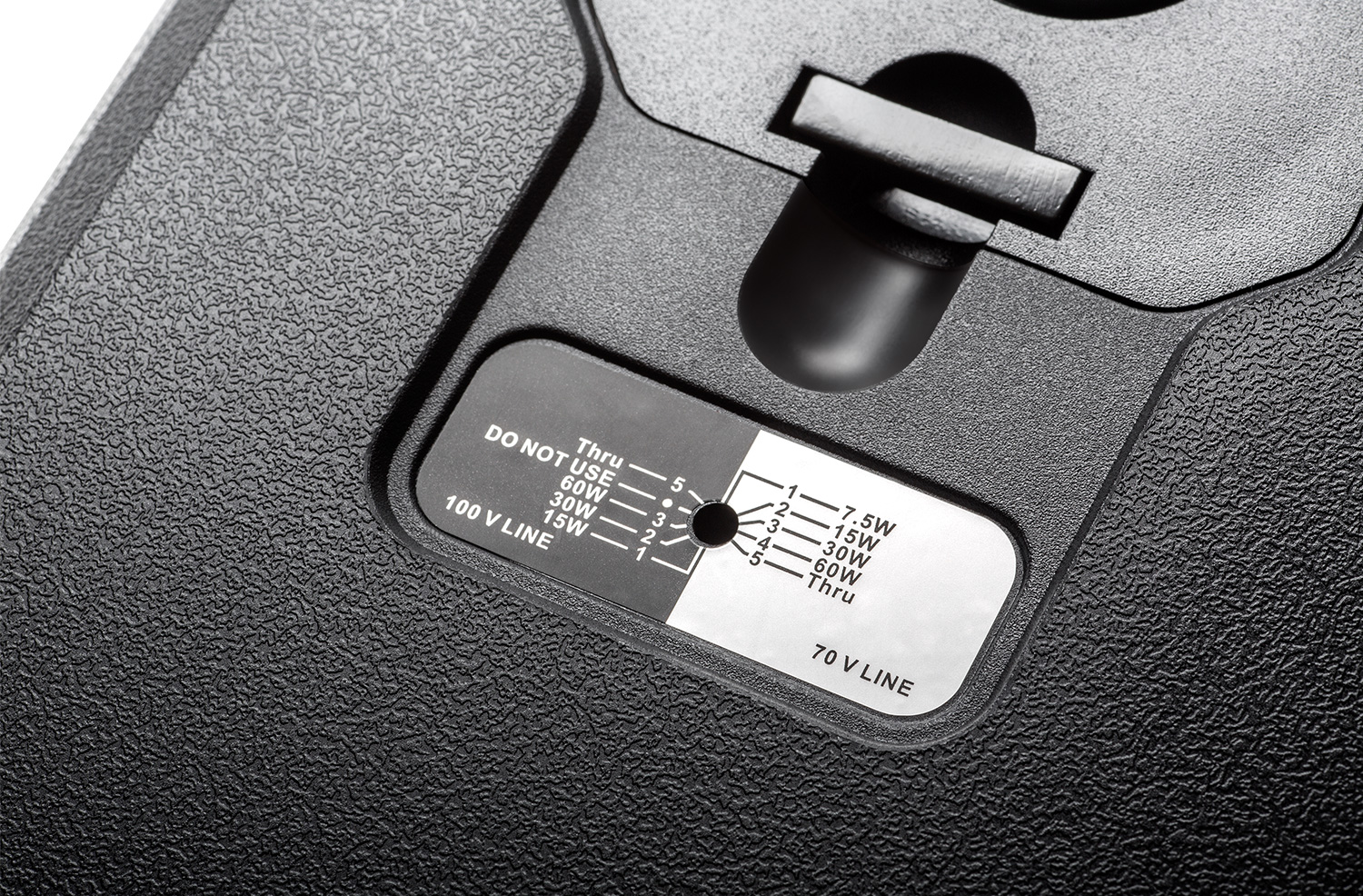

Transformer Taps 70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W Insertion Loss: <0.94 dB at any tap setting Thru Setting: 8Ω nominal
Recommended ProtectiveHigh-Pass 45 Hz high-pass (24 dB/oct) for 8Ω operation plus 15W and 7.5W taps; 55 Hz for 30W tap; 65 Hz for 60W tap.
Drivers LF: 200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
HF: 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Enclosure High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.

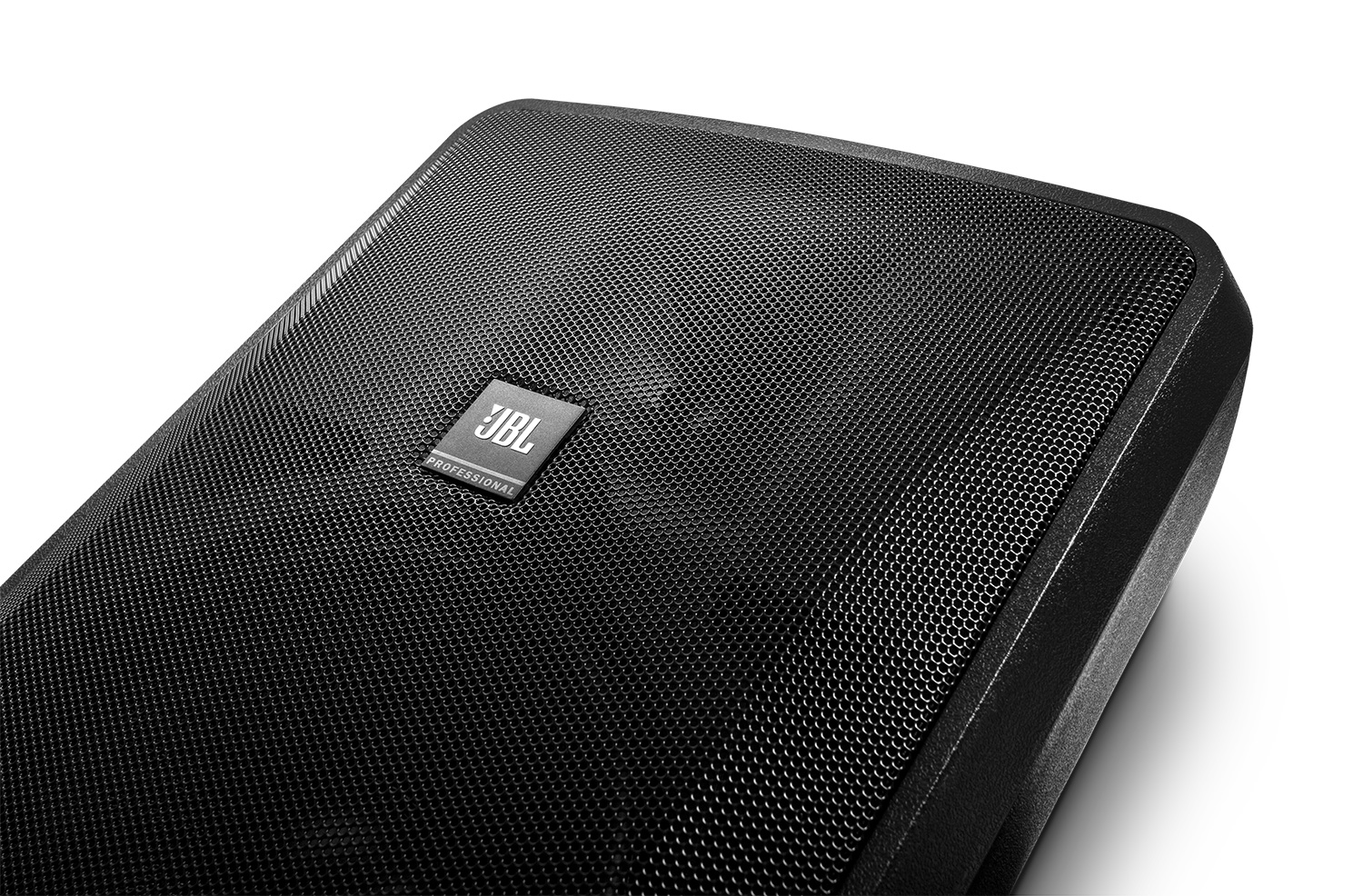

Grille Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.

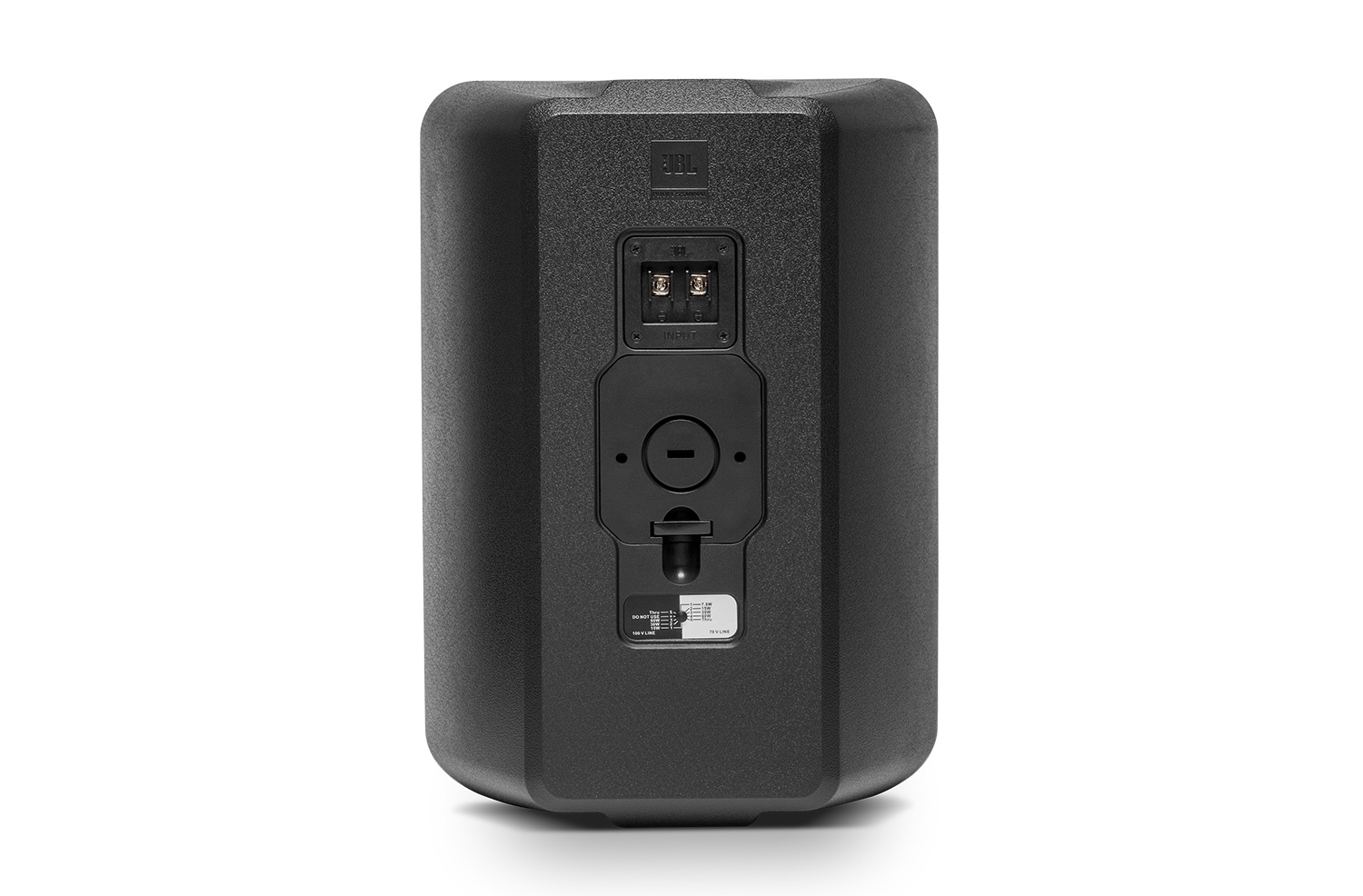

Mounting Hardware InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-28WMG-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Outdoor Capability IP-44 per IEC529 (IP-55 when installed with the optional MTC-28WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-28WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
Input Connectors Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Safety Agency ROHS-compliant; Transformer UL Recognized per UL1876
Colors Black (RAL9004) or white (-WH, RAL9016)
Dimensions (H x W x D) 386 x 282 x 219 mm (15.2 x 11.1 x 8.6 in); 277 mm (10.9 in) deep total when mounted on InvisiBall wall-mount bracket.
Net Weight (each) 6.8 kg (15.0 lbs)
Shipping Weight 15.4 kg (34 lbs) pair-packed (for 2 speakers)
Included Accessories InvisiBall™ wall-mounting system), 6 mm x 180 mm hex key
Optional Accessories MTC-28UB-1 – Yolk-type U-bracket (&-WH) MTC-28WMG-1 – WeatherMax grille with backing (&-WH) MTC-28/25CM – Ceiling-Mount InvisiBall adapter (&-WH)

Para más información del producto:

https://jblpro.com/en-US/products/control-28-1
