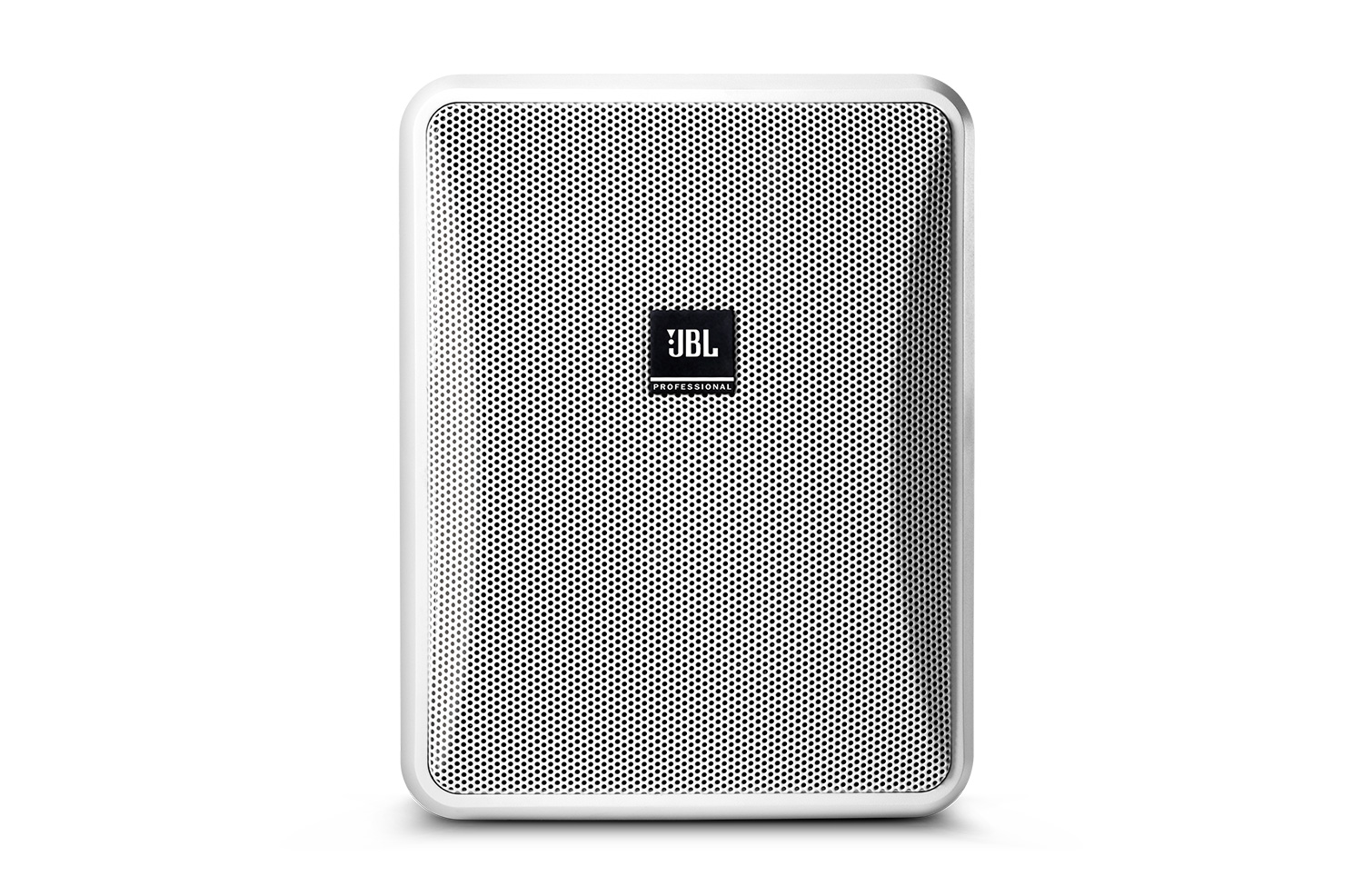

CAJA PASIVA JBL CONTROL 25-1 BLANCA (PAREJA)

397,48 IVA Incluido

¿Lo has visto más barato? Clica aquí

Agotado

CAJA PASIVA JBL CONTROL 25-1 BLANCA (PAREJA)

Caja todo-rango de 2 vías compacta, woofer de 5 1/4″, tweeter PEI de 3/2″, con difusor 100 x 100 . Potencia Programa: 200W; Potencia Continua 100H: 75 W a 8Ohm. Sensibilidad 90 dB (1W / 1m). Potencia a 100 V ( 30, 15, y 7,5W) o a 70 V ( 30, 15, 7,5, y 3.7W). Respuesta en frecuencia de 85 Hz a 17 KHz.

Caja IP44 resistente a radiacion Ultra Violeta con rejilla galvanizada. Disponible opción IP55 montando MTC-25WMG-1 WeatherMax opcional. Acabado en color negro. Incluye soporte de rótula InvisiBall. Dimensiones: 243x188x145 mm. Peso: 3,4 kg.
SKU: CONTROL25-1-WH Categorias: , ,

CAJA PASIVA JBL CONTROL 25-1 BLANCA (PAREJA)

Specifications

Frequency Response (-10dB) 60 Hz to 20 kHz
Frequency Response (±3 dB) 85Hz – 17 kHz
Power Rating 200 W Continuous Program (2 hrs) 100 W (400W peak), Continuous Pink Noise (2 hrs) 75 W (300W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage 25.3 V RMS (2 hrs), 50.6 V peak
Maximum SPL (1m) 110 dB ave. Continuous Pink Noise (116 dB peak)
Sensitivity 90 dB, 1W/1m (ave. 100 Hz – 10 kHz)
Coverage Angle 100° x 100°
Directivity Factor (Q) 6.04 (averaged 1kHz – 16kHz)
Directivity Index (DI) 7.6dB (averaged 1kHz – 16kHz)
Impedance 8 ohms (THRU setting)
Crossover Type 2nd order low-pass, 3rd order high-pass
Transformer Taps 70V: 30W, 15W, 7.5W, 3.7W 100V: 30W, 15W, 7.5W Insertion Loss <0.94 dB at any tap setting Thru Setting: 8Ω nominal
Recommended ProtectiveHigh-Pass 60 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings).
Drivers LF: 135 mm (5.25 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
HF: 19 mm (0.75 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Enclosure High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-25WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Mounting Hardware InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-25UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Outdoor Capability IP-44 per IEC529 (IP-55 when installed with the optional MTC-25WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-25WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
Input Connectors Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Safety Agency ROHS-compliant; Transformer UL Recognized per UL1876
Colors Black (RAL9004) or white (-WH, RAL9016)
Dimensions (H x W x D) 243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in); 203 mm (8.0 in) deep total when mounted on InvisiBall wall-mount bracket.
Net Weight (each) 3.4 kg (7.5 lbs)
Shipping Weight 8.16 kg (18 lbs) for the pair-pack (for 2 speakers)
Included Accessories InvisiBall™ wall-mounting system), 6 mm x 100 mm hex key
Optional Accessories MTC-25UB-1 – Yolk-type U-bracket (&-WH) MTC-25WMG-1 – WeatherMax grille with backing (&-WH) MTC-28/25CM – Ceiling-Mount InvisiBall adapter (&-WH)



Para más información del producto:

https://jblpro.com/en-US/products/control-25-1
