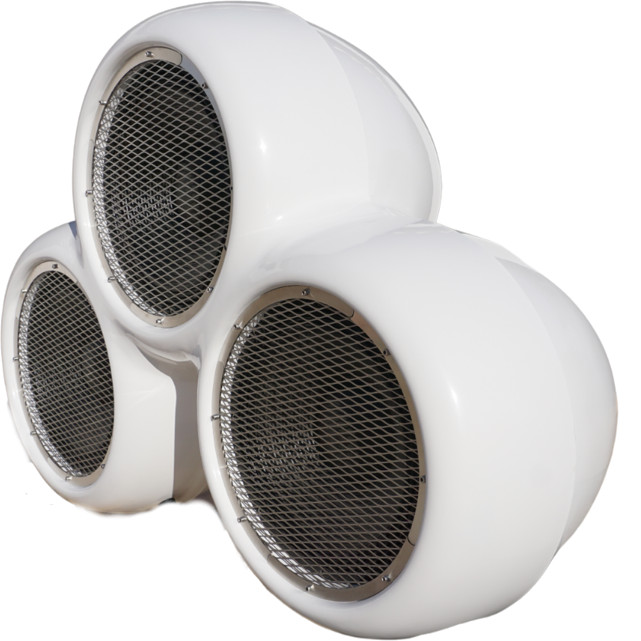

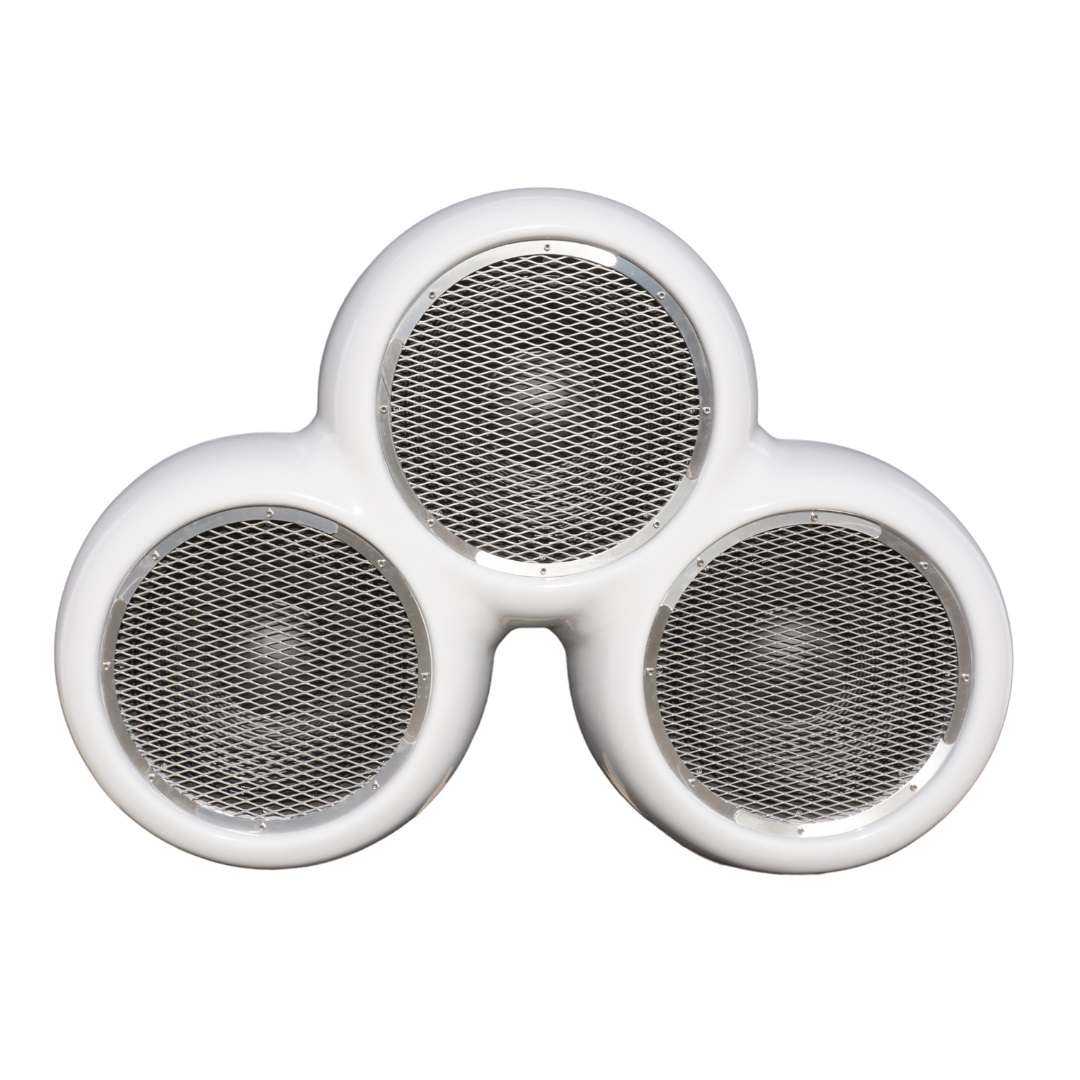

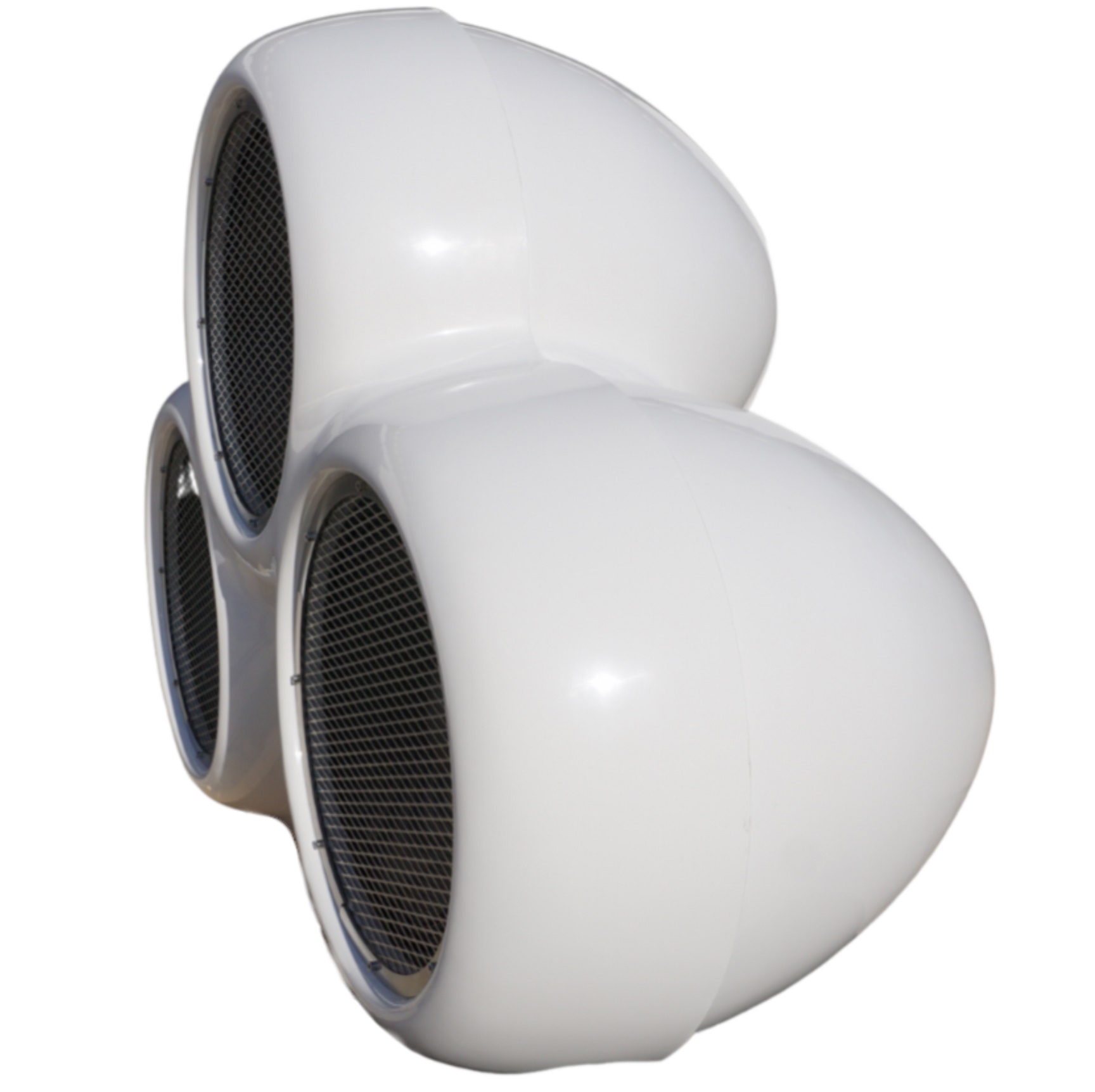

SUBWOOFER PEQUOD CERBERUS 12.1
| TYPE | Bass reflex subwoofer in tri-ovoidal structure |
| FREQUENCY RESPONSE | 35 Hz – 1 KHz |
| TOTAL SENSITIVITY | 102 dB/1W/m |
| NOMINAL IMPEDANCE | 2 Ohm (parallel connection)or 4 Ohm x 3 (4ohm for each 18” woofer) |
| POWER HANDLING | 5100 W nominal, 10200 W power continuous program |
| MANAGE | 2 Ch amplifier to a couple of Cerberus+DSP to match to satellite. Otherwise 3 ch amplifier to one Cerberus, each 18” driven individually. High-pass filter @25Hz, 24 dB/oct. ;Low-pass filter @100-120Hz, 24 dB/oct. |
| RECOMMEND ED AMPLIFIER | 2 channel amplifier, around 10000W on each channel @ 2 ohm stable |
| DISPERSION | Omnidirectional |
| CONSTRUCTION MATERIALS | Fiber-reinforced composite, stainless steel |
| FINISH | all ral color and texture on order |
| CONNECTORS | 3 (6) x Neutrik NL4 or custom preference |
| DIMENSIONS (with trolley) | (W) 1600 mm (H) 900 mm (D) 7000 mm; (W) 28 inch (H) 28 inch (D) 28 inch |
| WEIGHT | 53 Kg (50 lb) w/o support |
