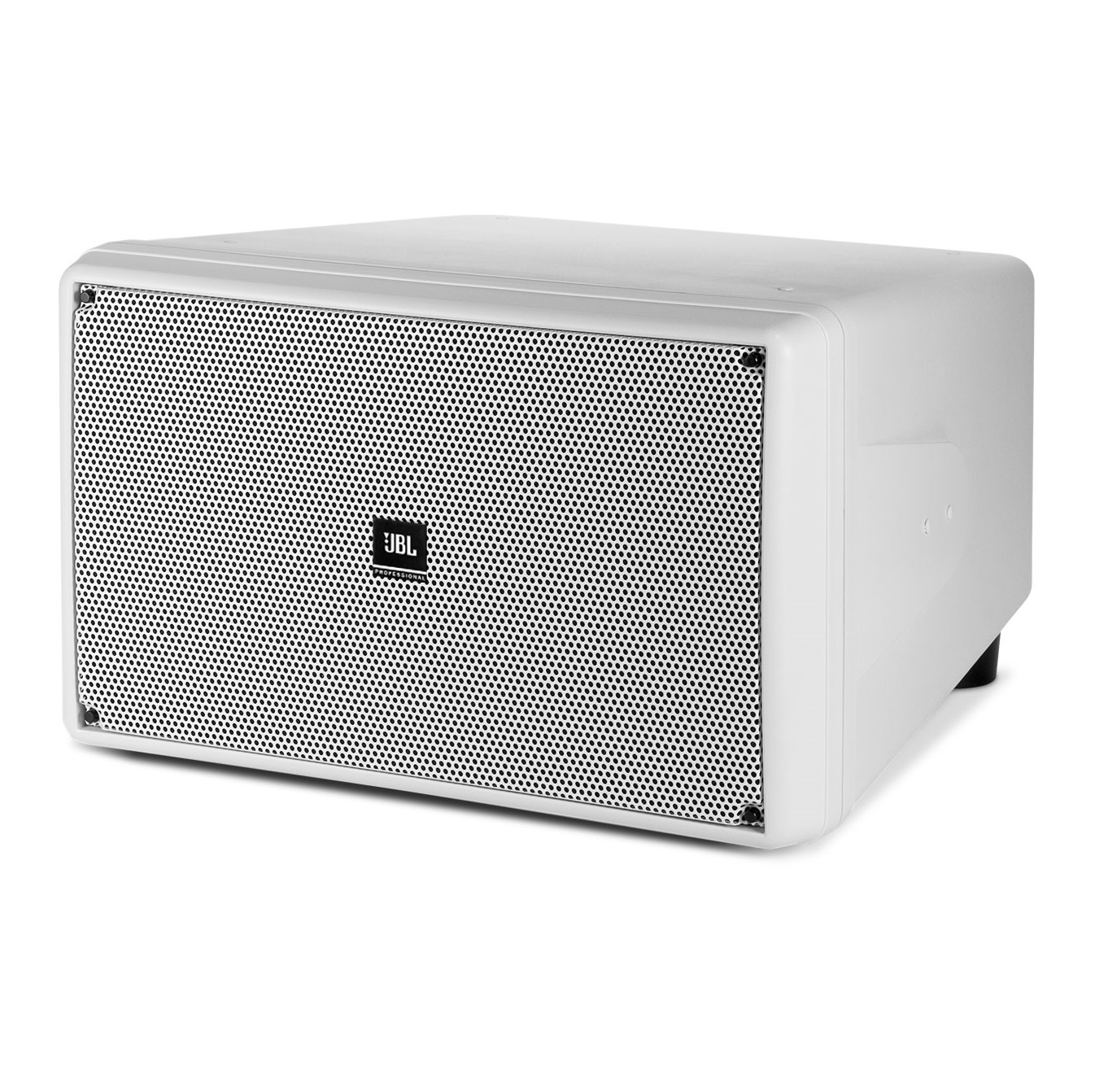

SUBWOOFER PASIVO JBL CONTROL SB2210 BLANCO

917,90 IVA Incluido

Agotado

SUBWOOFER PASIVO JBL CONTROL SB2210 BLANCO

Subgrave para toda la serie control contractor de 2 woofers de graves de 10». Potencia Programa: 1000W, a 8Ohm; Potencia Continua 100H: 400W a 8Ohm. Sensibilidad 95 dB (1W / 1m). Max SPL 122dB. Respuesta en frecuencia de 48 Hz a 500 Hz. IP-45 cuando se monta MTC-PC2 incluido.

Incluye tacos de suelo. Acabado en blanco pintable. Dimensiones: 335x590x570 mm. Peso: 23,31 Kg.
SKU: CONTROL-SB2210-WH Categorias: , ,

SUBWOOFER PASIVO JBL CONTROL SB2210 BLANCO

Specifications

Frequency Response (-10dB) 38 Hz – 500 Hz
Frequency Response (-3 dB) 48 Hz – 95 Hz
Power Rating 500W (2000W peak) Continuous Pink Noise (2 hrs) 1000W Continuous Program(2 hrs) 400W (1600W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage 60.0VRMS (2 hrs), 120V peak
Sensitivity 95 dB, 1W @ 1m in half-space (2π loading, average 50 – 90 Hz)
Maximum SPL (1m) 122 dB in half-space (2π loading)
Impedance
Minimum Impedance 7.2Ω at 160 Hz
Recommended Filter 45 Hz, 24 dB/oct high-pass filter
Drivers Two 250 mm (10 inch) diameter LF drivers, long-excursion design, woven fiberglass cone, highly damped butyl rubber surround, linear suspension spider , high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring.
Enclosure High Impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold, painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance.
Grille Thermoset composite coated steel, zinc-plated, 3-layer foam backing.
Outdoor Capability IP-45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray.
Input Connectors Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2). Included MTC-PC2 and optional MTC-PC3 protective covers available to provide sealed entrance for additional weather protection.
Safety Agency ROHS-compliant. Optional MTC-SBT300 transformer is UL recognized per UL1876.
Colors Black or white (-WH)
Dimensions (H x W x D) 355 x 590 x 570 mm (14 x 23.3 x 22.5 in.)
Net Weight (each) 23.31 kg (51.4 lb)
Shipping Weight 25.85 kg (57.0 lb)
Included Accessories 1 pc MTC-PC2 input panel cover, 4 pcs floor standing feet 4 pcs beveled washers.
Optional Accessories MTC-210UB (&-WH) U-BracketMTC-SBT300 70V/100V Transformer, 300W multi-tap, installs onto inside of back input panel using included 4 studs.Transformer Taps:70V: 300W, 150W, 75W, 38W100V: 300W, 150W, 75W
Mounting Hardware Optional U-bracket, insert points on top & bottom.



Para más información del producto:

https://jblpro.com/en-US/products/control-sb2210
