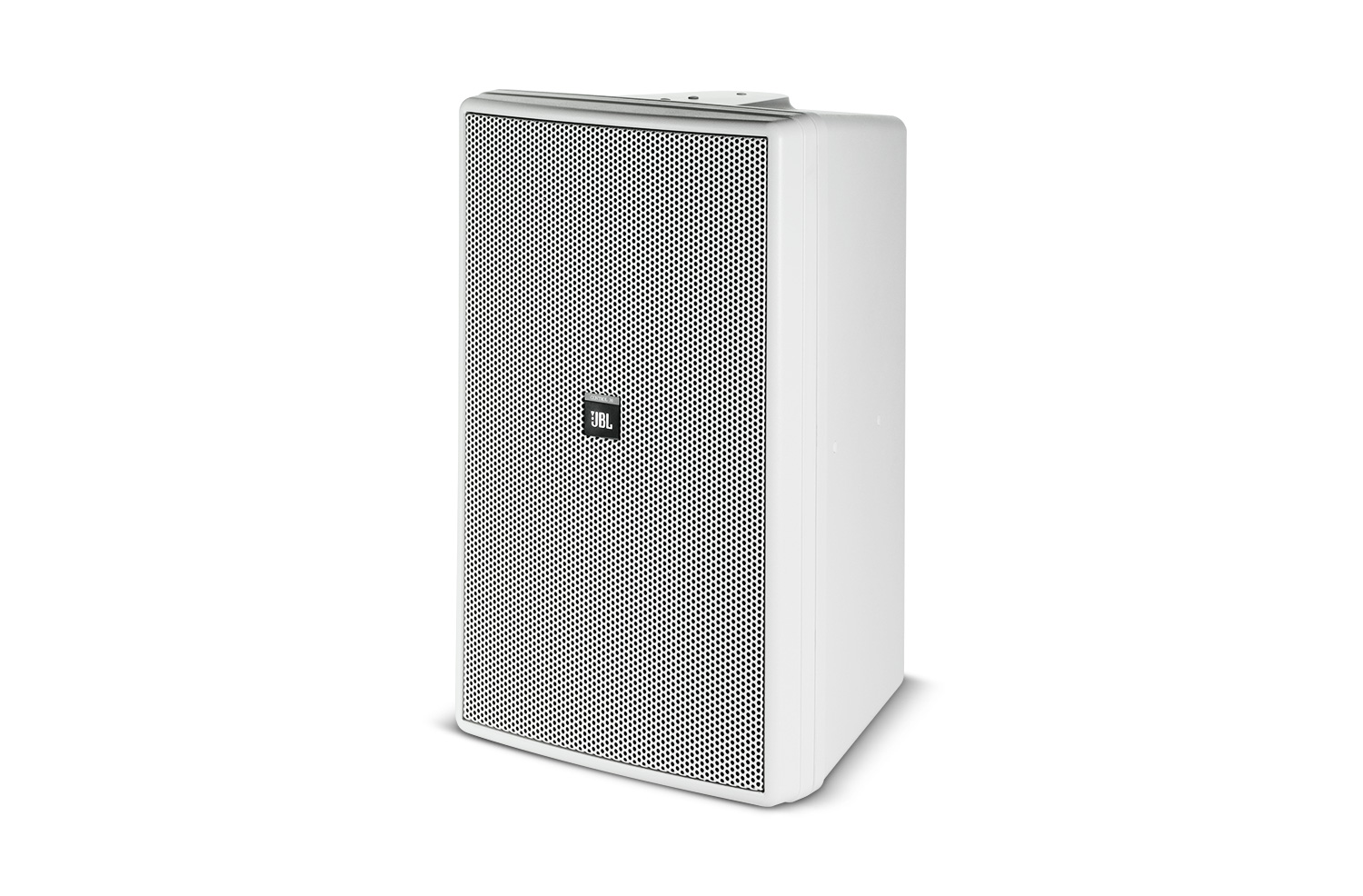

CAJA PASIVA JBL CONTROL 30 BLANCA

853,49 IVA Incluido

¿Lo has visto más barato? Clica aquí

Agotado

CAJA PASIVA JBL CONTROL 30 BLANCA

Caja todo-rango de 3 vías compacta, woofer de 10″, conjunto de medios-agudos coaxial, de 4,5″ y 1″, difusor 120 x 110 . Potencia Programa: 500W; Potencia Continua 100H: 250W, a 8Ohm y conmutable a línea de 100V (150, 75 y 38 W) o 70V (150, 75, 38, 19). Sensibilidad 93 dB (1W / 1m). Respuesta en frecuencia de 38 Hz a 17 KHz.

Caja y componentes resistentes a intemperie con protección de espuma en la rejilla y protector de panel de conexiones MTC-PC2, acabado en blanco. Incluye soporte de rótula InvisiBall. Dimensiones: 593x372x345 mm. Peso: 18,9 kg.
SKU: CONTROL30-WH Categories: , ,

CAJA PASIVA JBL CONTROL 30 BLANCA

Specifications

Frequency Range 38 Hz – 17 kHz (-10 dB)
Power Capacity 500 W Continuous Program Power; 250 W Continuous Pink Noise
Transformer Taps 70 V: 150 W, 75 W, 38 W, 19 W 100 V: 150 W, 75 W, 38 W Thru Position: 4 ohms nominal
Frequency Response 40 Hz – 16 kHz ( ± 3 dB)
Maximum SPL (1m) Short-Term: 123 dB; Long-Term: 117 dB
Sensitivity 93 dB, 1W @ 1m (3.3 ft)
Coverage Angle 120° H x 110° V
Directivity Factor (Q) 5.2 dB, averaged 500 Hz to 10 kHz
Directivity Index (DI) 7.1 dB, averaged 500 Hz to 10 kHz
Impedance 4 ohms
Crossover Network 3rd order Low Pass LF, 2nd order High Pass/3rd order Low Pass MF, 3rd order High Pass, HF, plus conjugate shaping circuitry.
Drivers LF: 250 mm (10 in) fiberglass/Kevlar® cone with pure butyl rubber surround, 50 mm (2 in) voice coil on fiberglass former, neodymium magnet
MF: 125 mm (5 in) anodized aluminum cone with EPDM rubber (Terpolymer of Ethylene and Propylene) surround, 25 mm (1 in) voice coil on fiberglass former
HF: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround
Enclosure High Impact PolyStyrene (HIPS) with 10% glass fill plus patent pending internal 5 mm foamed polyurethane secondary mold
Grille Thermoset composite coated steel, WeatherMax multi-layer foam
Overload Protection SonicGuard full range power limiting to protect network and transducers.
Outdoor Capability IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.
Input Connectors Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open
Safety Agency Transformer is listed per UL1876
Colors Black or white (-WH)
Dimensions (H x W x D) 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in.)
Net Weight (each) 18.9 kg (42 lb)
Shipping Weight (ea) 20.3 kg (45 lb)
Included Accessories 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 305 mm InvisiBall Hex wrench.
Optional Accessories MTC-30CM (-WH) to install speaker down from the ceiling. MTC-30UB (-WH) U-Bracket
Mounting Hardware InvisiBall™ aimable wall-mounting system included. Optional U-bracket.



Para más información del producto:

https://jblpro.com/en-US/products/control-30
